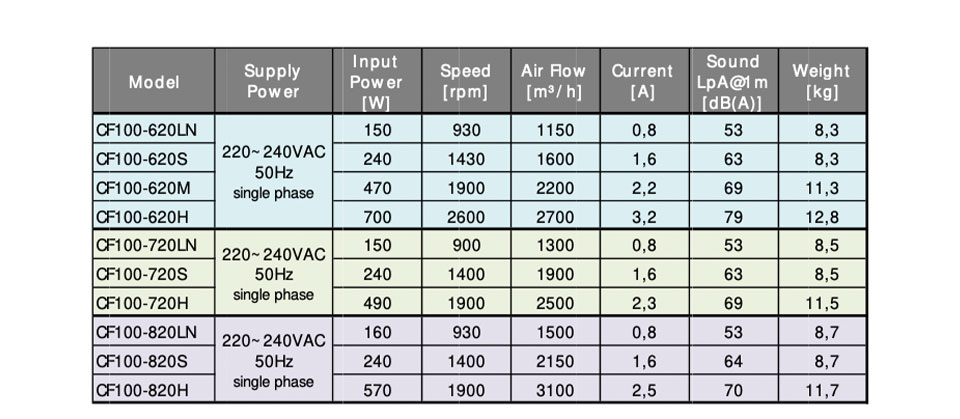

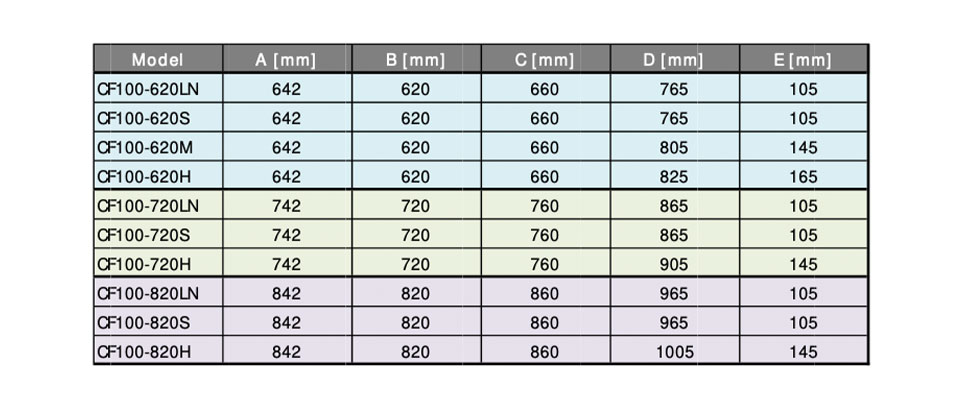

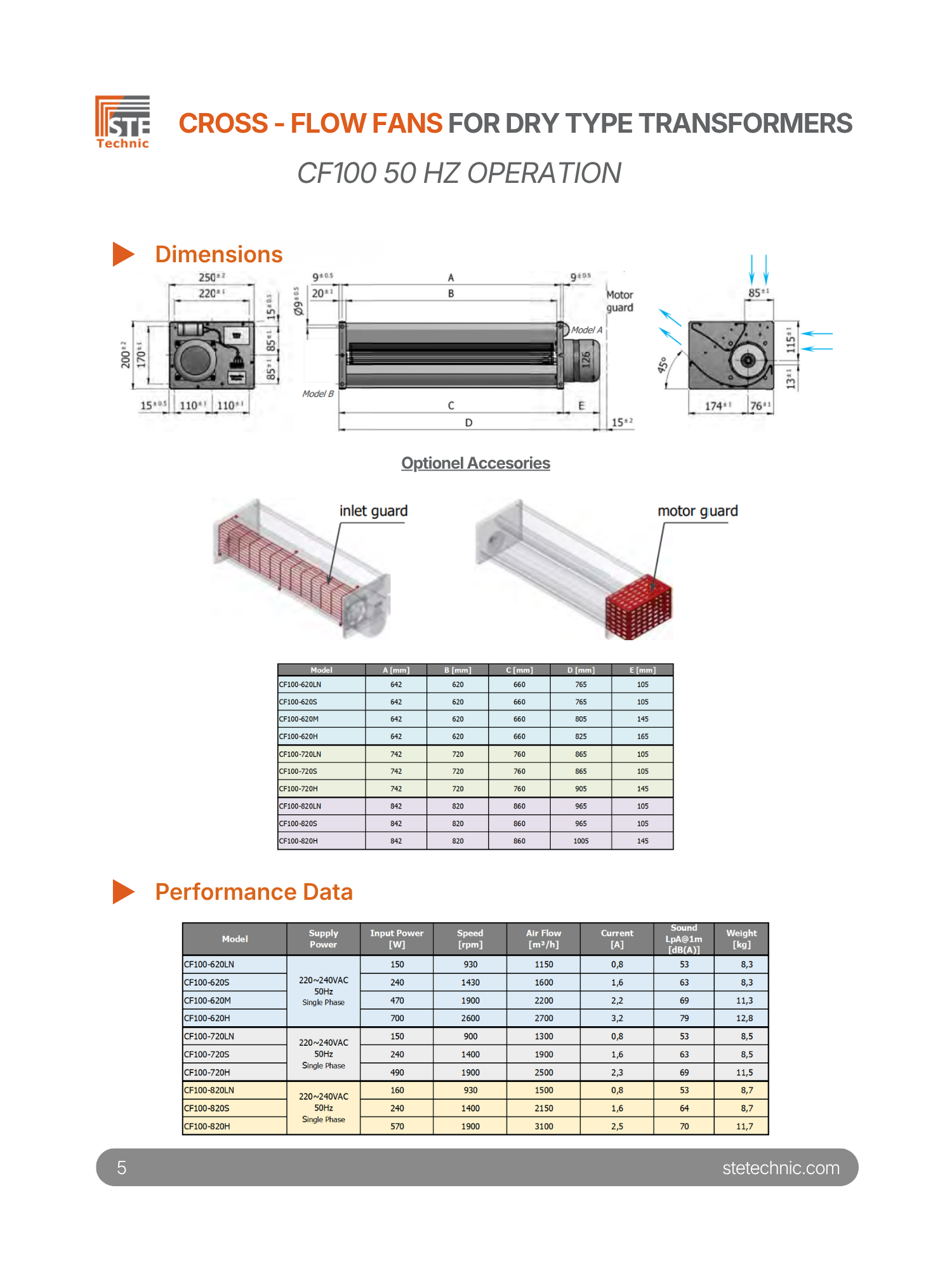

CF100 50HZ

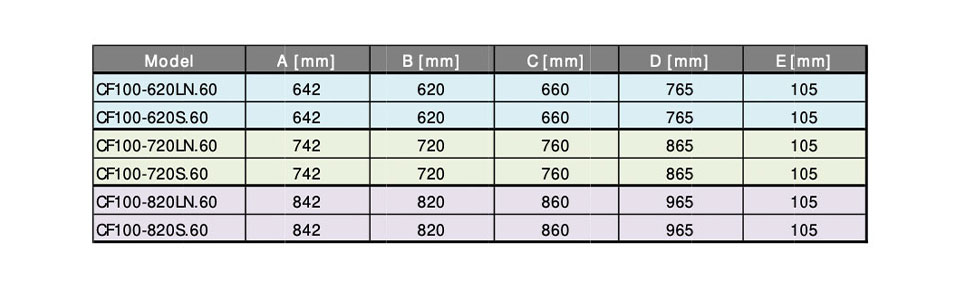

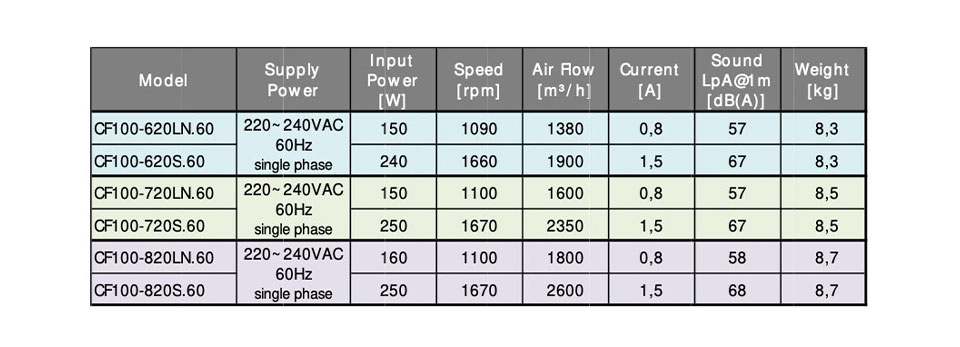

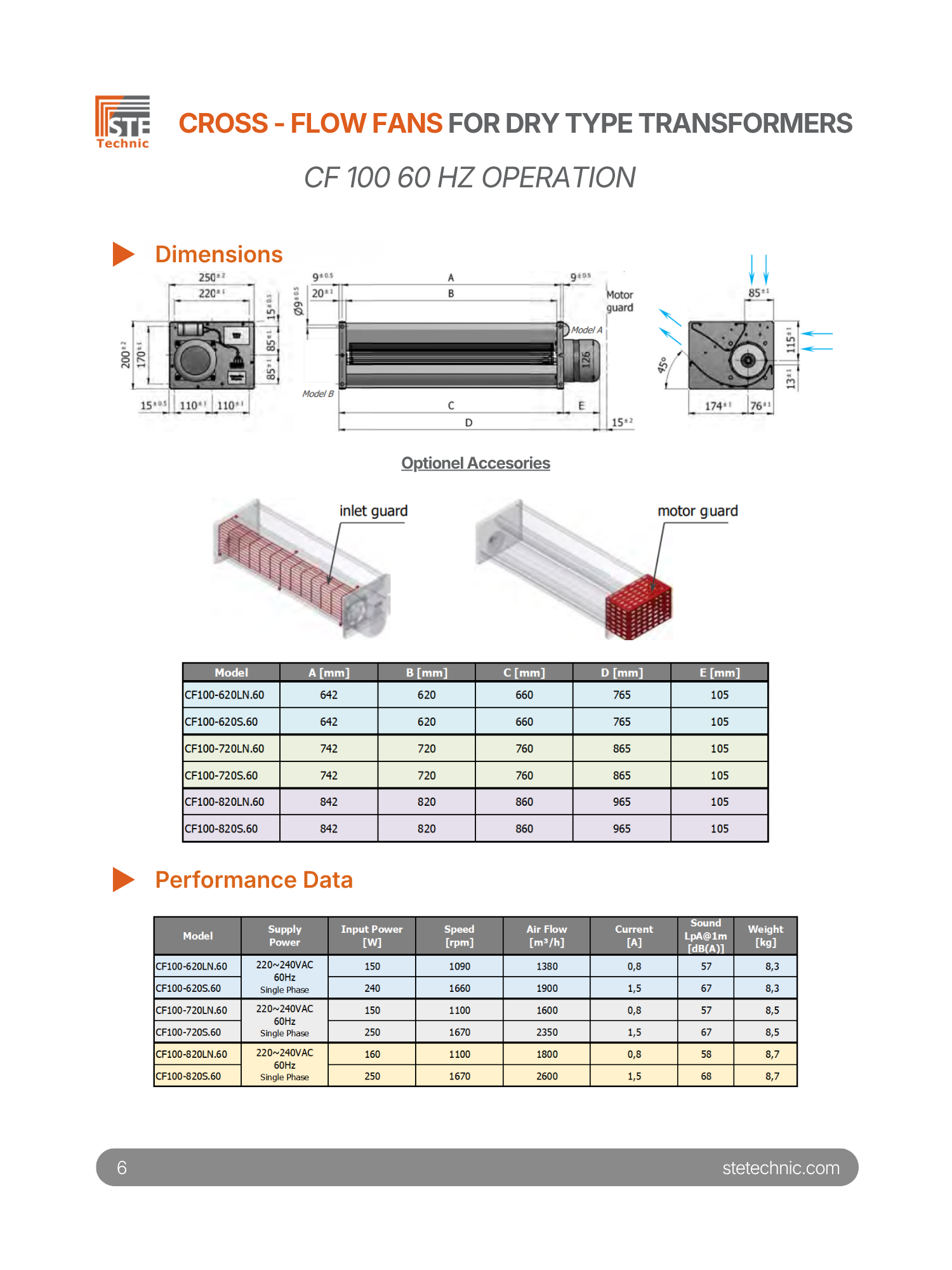

CF100 60HZ

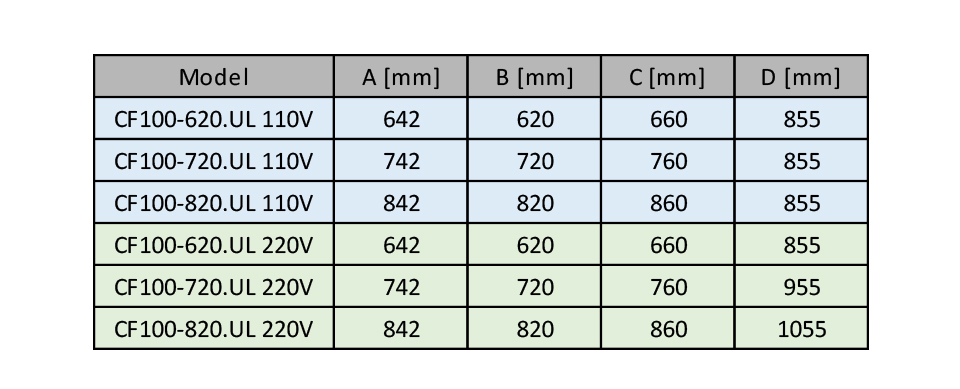

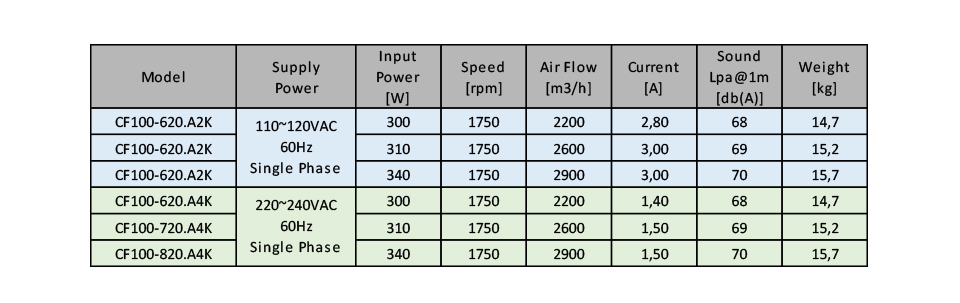

CF100 IP55
.jpg)
CF100 50HZ
CF100 60HZ
CF100 IP55
.jpg)
1- Fan blades and guide housing are made of aluminum; other components are produced from Magnelis or galvanized steel.
2- Operating ambient temperature range of the fan is -25°C to +60°C.
3- Motor winding insulation is of Class H.
4- Equipped with a single-phase capacitor start system, with supply voltage of 220240VAC or 110120VAC.
5- Overload protection is provided by an internal OLP (Overload Protection).
6- Optional motor and protective grilles can be added for enhanced safety.
7- In CF100 models, the motor mounting position can be configured as left or right depending on order.
8- Suitable for indoor operating environments.
9- Equipped with a high-efficiency motor.
